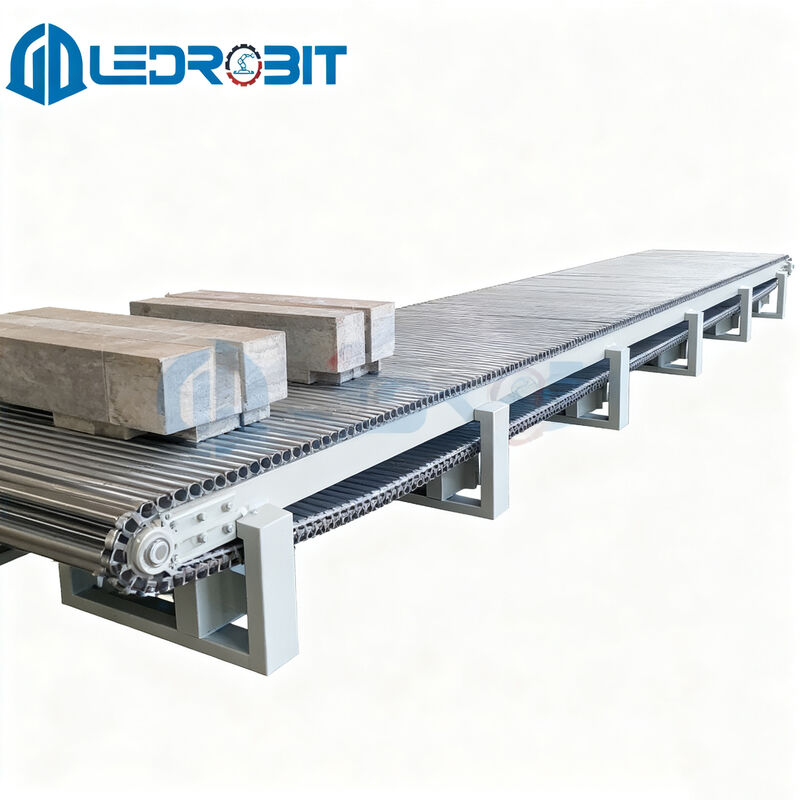

Industrial Powered Galvanized Roller Conveyor
Industrial-grade powered roller conveyor with hot-dip galvanized frame for transporting aluminum, steel, or stone sheets between workstations. Designed for heavy, long, or hot materials that require reliable mechanical handling.
Construction Highlights
  • Galvanized steel side profiles - Zinc coating applied after fabrication protects cut edges against rust and corrosion.
  • Chain-driven rollers - Each roller coupled to a common chain ensures consistent movement even with uneven loads.
  • Bolt-on geared motor - Mounts on either side to suit your layout with no chain tensioner required.
  • Plug-in wiring - Motor and sensor cables terminate at numbered terminal strips for quick control cabinet connection.
  • Modular design - Straight sections available up to 3m length; multiple sections can be joined for custom configurations.
Operating Specifications
  • Roller pitch: Configured to ensure at least three rollers support the shortest sheet at all times
  • Load guidance: Optional fixed or adjustable side rails available to prevent sheet drift
  • Ambient range: -10°C to +50°C operation with IP55-rated motor protection against workshop dust and water mist
Integration Options
  • Photoelectric sensor for "sheet present" signaling
  • Lift-and-transfer module for 90° sheet redirection to cross conveyors
  • Frame-mounted frequency inverter for variable speed control
Ordering Information
Please provide these details for a customized quotation:
  • Sheet material type and maximum single weight
  • Minimum and maximum sheet length requirements
  • Required conveyor length and preferred feed direction
  • Height specifications for matching existing equipment
